Toggling Intermediate Annotation Visibility


About Intermediate Annotation Visibility

If turned on, intermediate contours will be annotated or labeled with the elevation they represent.

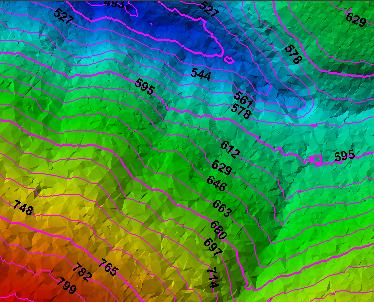

Picture of contour annotation

How to Toggle Intermediate Annotation Visibility

Annotate Intermediate Contours Checkbox

1. Open the Contour Property Page by selecting the Properties button on the LP360 toolbar, then click the Symbology tab, the Contours tab, and the Annotation tab. This is the order of the nested tabs.

2. Click the "Annotate Intermediate Contours" check box to toggle the visibility of intermediate annotation.
