Classification Legend Property Page



The Classification Property Page is used to assign a color and point size to one or more classification values. The classification values assigned to a color are intended to represent categories such as "Bare Earth" or "Canopy". A list of 18 classes is displayed. The number of available classes is based on the active layer.

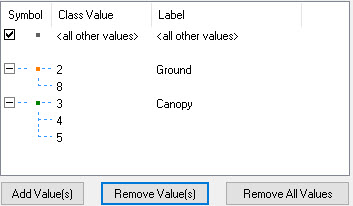

Picture of the Classification Property Page

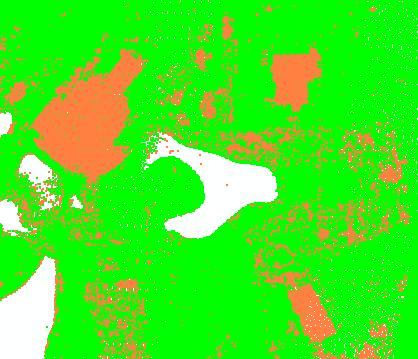

Example of a Classification Legend

Tan = Canopy/Other
Green = Ground

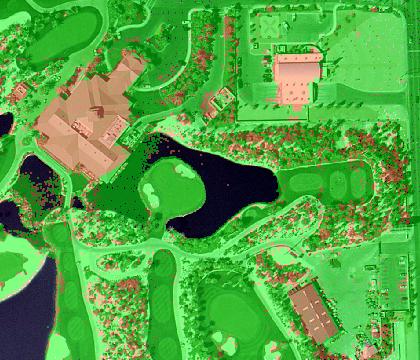

Blended with Imagery

Learn how to add new values or categories

Learn how to remove values or categories

Learn how to modify values or categories

Learn how to modify the label for categories

Learn how to modify the default symbol and label

Learn how to modify the symbol for categories
