Specifying Displacement/Delta Summaries

About Displacement/Delta Summaries

In order to satisfy the downstream criteria for the conflation method, individual vertices may be adjusted along the z axis up or down. You may request summary information about these adjustments such as the maximum, minimum, mean, and standard deviation of the displacements within a single output geometry or feature. The summary values are stored as attributes for the feature.

If the output feature class can store m values, individual delta values are stored in the m values for the output geometry. This can be useful for further investigations of offending vertices within the output geometry.

Learn more about how vertices are adjusted

How to Specify Displacement/Delta Summaries

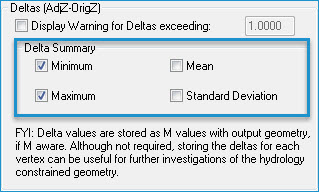

Displacement/Delta Summary Value Checkboxes

Within the Downstream Conflation Method dialog, click one or more summary value types to specify the specific values to summarize for displacements or deltas.
