LP360 Point Tasks Tab

LP360 Point Cloud Tasks

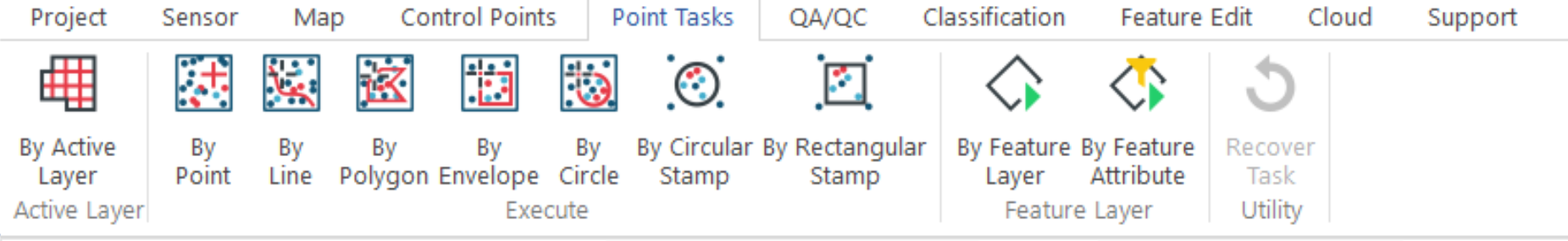

The LP360 Point Cloud Tasks Toolbar comprises the tools that execute point cloud tasks on the active LIDAR Layer. On the toolbar there are tools to execute tasks over drawn geometry such as polygons, predefined cursor shapes called stamps, for selected features or graphics, and for an entire project. If applicable, it is suggested that the Preview Window be used to evaluate the results of a task before using any of the tools listed on this toolbar.

Unlike the Preview Window, executing point cloud tasks with any of the tools on the LP360 Point Cloud Tasks Toolbar requires that appropriate licensing exist for the point cloud task to execute.

Learn more about point cloud task classes, and required licensing

Digitizing Notes:

• While digitizing Point Cloud Task geometry, you can use the mouse wheel to zoom in and out.
•

• The middle mouse button may also be used to "quick-pan" the map while digitizing.
•

• A right-click will undo the last clicked vertex when digitizing a PCT line or polygon geometry.

Execute Task By Point Tool
Execute Task By Linestring Tool
Execute Task By Polygon Tool
Execute Task By Envelope Tool
Execute Task By Circle Tool
Execute Task By Circular Stamp Tool
Execute Task By Rectangular Stamp Tool
Execute Task For a Project Command
Execute Task By Feature Layer Tool
Execute Task By Feature Layer (Indirect) Tool
